A regular sneaker is an assembly: a dozen cut pieces, glued and stitched around a foam midsole. A 3D printed shoe is something else entirely — it is grown as one piece, layer by layer, straight from a digital file. Here is how that actually happens.
Step 1 — The shoe starts as a file

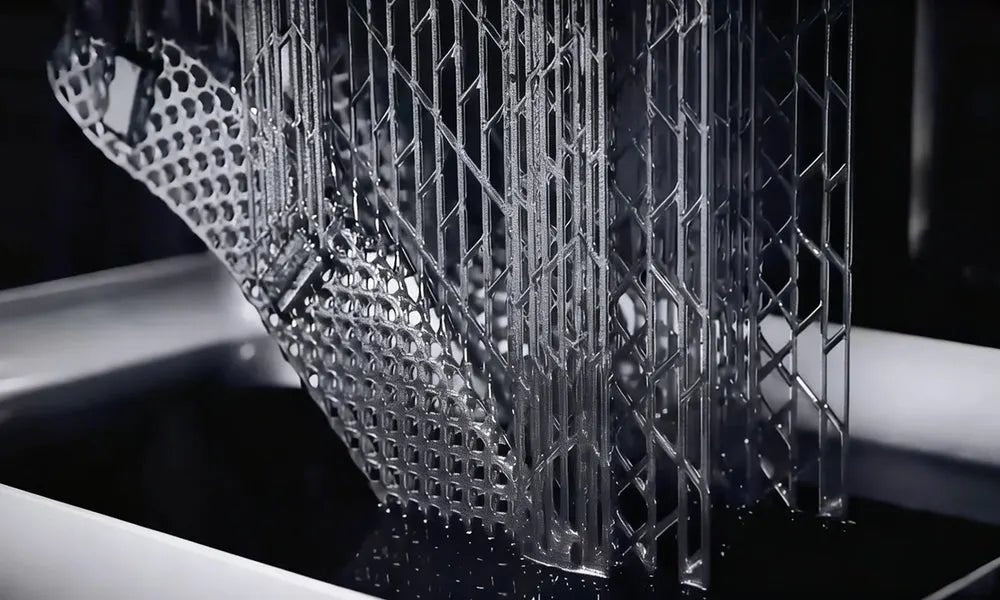

Every model begins as a 3D design: the outer shape, and inside it a lattice — thousands of tiny struts arranged in zones. Designers tune the lattice density zone by zone, so the heel can be softer, the arch firmer and the forefoot springier, all within a single material. No inserts, no layers of different foam.
Step 2 — Printed by light
Our anchor brand Nexbie uses DLP printing (Digital Light Processing). A vat of liquid resin sits above a light engine; the printer projects one cross-section of the shoe at a time, and where light hits, the resin cures solid. The build plate lifts, fresh resin flows in, and the next layer cures. Over a few hours a complete shoe emerges from the liquid — already in its final shape.
Step 3 — Wash, cure, finish
The printed pair is washed of uncured resin, then post-cured to reach full strength and finished by hand. That is the whole supply chain: no cutting, no sewing line, no glue station. It is why a 3D printed shoe has no seams to split and no adhesive to fail — the usual first failure points of ordinary sneakers.
Why this changes the shoe you wear
- Breathability: the lattice is mostly air, so heat escapes — a big deal in Gulf summers.
- Washability: a single non-absorbent material means you can rinse the whole shoe under a tap.
- Consistent cushioning: printed lattice rebounds the same way for far longer than foam, which packs down.
- Less waste: shoes are printed to order rather than mass-produced and shipped across oceans.
You can see the lattice up close on the Aeroraise sneaker and the AeroCloud slipper — or read why XTRUDE exists. Every pair ships free across the UAE, with delivery details here.
